Expected level of development
Australian Curriculum Mathematics V9: AC9M5M04
Numeracy Progression: Understanding units of measurement: P7
At this level, students should understand when working with angles that they are describing the amount of turn or rotation, and develop their estimation and measurement skills.

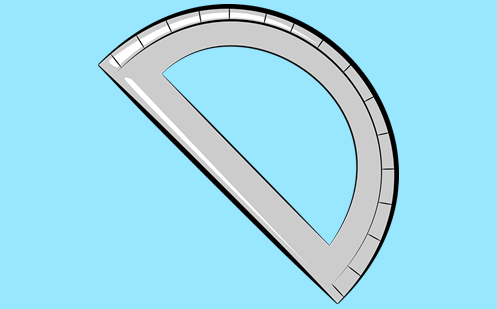

Provide relevant contexts for students to explore angles. Model how to use a protractor and introduce the ‘degree’, develop their understanding that a full rotation is 360°, a quarter turn is 90° (right angle), a half turn is 180° (straight line) and a threequarter turn is 270°. Students can use these benchmarks when estimating and comparing the sizes of angles.
Provide students with experience in using protractors. Explicitly teach why the numbers labelled are between 0° and 180° in a clockwise and anticlockwise direction.
Use dot paper grids to construct and represent angles. Order various representations of angles compared to 90°, which are less than, and which are greater than 90°.
Use interactive tools to estimate angles to the nearest degree.
Develop students’ reasoning and problemsolving skills when presented with problems about angles on a straight line and angles around a point.
Teaching and learning summary:
 Provide relevant contexts for students to explore angles.
 Encourage students to estimate angles before measuring.
 Model how to use a protractor and introduce the degree.
 Provide students with experience in using protractors.
Students:
 estimate the size of an angle
 accurately measure and construct angles using a protractor
 use geometric language to describe an angle
 use reasoning when solving anglerelated problems.
Some students may:
 not understand the attribute they are measuring, misinterpreting the numbers on the protractor. For example, if students are unfamiliar with the sizes of angles, they may read an angle to be 73° instead of 107°. That is, they cannot identify that the angle is greater than 90° and is obtuse. Explicitly teach students to compare angles to the benchmark of a right angle. This often leads to students having less trouble with the protractor as they already know if an angle is greater or less than 90°.
 develop misunderstandings such as comparing angles based on the length of the rays. Model an angle that joins two lines of different length and extend lengths of lines to show that the angle does not change.
The Learning from home activities are designed to be used flexibly by teachers, parents and carers, as well as the students themselves. They can be used in a number of ways including to consolidate and extend learning done at school or for home schooling.
Learning intention
 We are learning about angles.
Why are we learning about this?
 We use angles in our everyday life.
What to do
 Use the interactive Estimating angles to improve your ability to estimate angles.
 Draw a picture showing your estimation in comparison to the target angle.
Target angle
My estimate(stopped at __ ˚)
Difference in ˚
Success criteria
I can:
 estimate an angle
 draw an angle
 find the difference between two angles.
Please note: This site contains links to websites not controlled by the Australian Government or ESA. More information here.
Teaching strategies
A collection of evidencebased teaching strategies applicable to this topic. Note we have not included an exhaustive list and acknowledge that some strategies such as differentiation apply to all topics. The selected teaching strategies are suggested as particularly relevant, however you may decide to include other strategies as well.

Explicit teaching
Explicit teaching is about making the learning intentions and success criteria clear, with the teacher using examples and working though problems, setting relevant learning tasks and checking student understanding and providing feedback.
Go to resource
Questioning
A culture of questioning should be encouraged and students should be comfortable to ask for clarification when they do not understand.
Go to resource
Classroom talks
Classroom talks enable students to develop language, build mathematical thinking skills and create mathematical meaning through collaborative conversations.
Go to resource
Teaching resources
A range of resources to support you to build your student's understanding of these concepts, their skills and procedures. The resources incorporate a variety of teaching strategies.

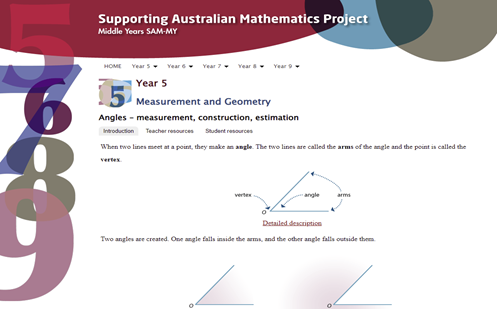

Angles: measurement, construction, estimation
This resource provides teacher resources and student resources involving estimating angle size. It includes a selfcheck for student answers to questions.
Go to resource
Skateboard skills
Students use geoboards, string and paper strips to create, name and classify different angles.
Go to resource

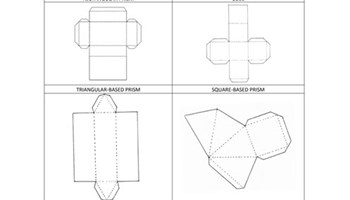

Geometry: Foundation to Year 9
A comprehensive book containing an overview of geometry stages, as well as lesson ideas, and a teaching framework for geometry.
Go to resource
Estimating angles
Teaching notes to support the use of an interactive that enables students to estimate the amount of turn (angle).
Go to resource

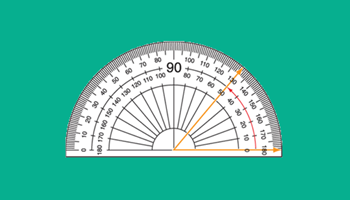

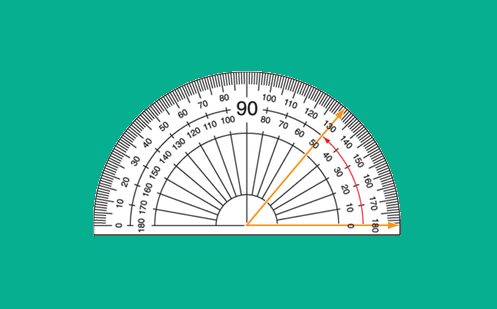

Practice with protractors
A direct instructional approach lesson focusing on students using a protractor to measure varioussized angles of alphabet letters that makeup their name.
Go to resource
Angles
Use these teacher slides to explore angles.
Go to resource

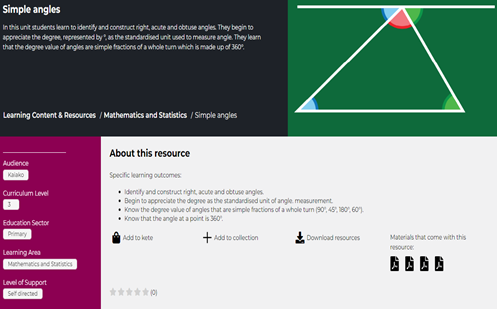

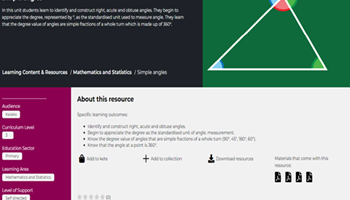

Simple angles
In this unit students learn that the degree value of angles are simple fractions of a whole turn which is made up of 360°.
Go to resource
